| Conductors |
: |
Center core : 6N copper,ø0.26 x 19 strands
Shield : 0.12T / 8 / 24 |
| Insulating |
: |
polymer polyolefin insulation |
| Conductor resistance |
: |
17.4 mΩ/m |
| Electrostatic Capacitance |
: |
68 pF/m |
| Length |
: |

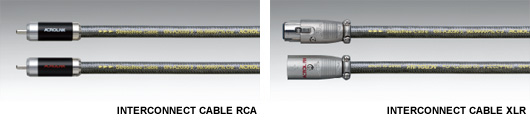

6N-A2030 II RCA/1.0m,1.5m
6N-A2030 II XLR/1.0m,1.5m
Custom lengths available. |
|
| Fe |
Ni |
Si |
Al |
| 0.03 |
0.003 |
0.05 |
0.005 |
| S |
Ag |
Na |
K |
| 0.05 |
0.05 |
0.004 |
<0.005 |
| U |
Th |
H |
O |
| < 0.0002 |
< 0.0003 |
< 0.03 |
< 1.0 |
|
| Typical Analysis(impurities) |
ppm/GD-MS Gas Analysis |
|
The standard, the specification, and the price of the product might change without a previous notice.
Acrolink® is a registered trademark of Acro Japan Corporation. |
|
|
|
|
