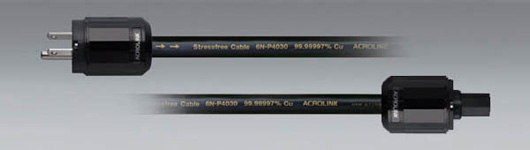

6N-P4030PC
Miraculous Presence, Stability with Amazing Depth... Advanced Energy Transport

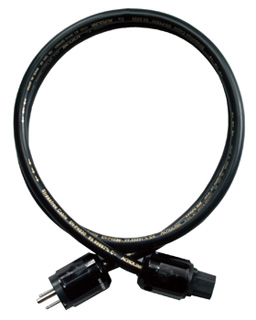

6N-P4030PC


Product introduction
Ultra high purity, 6N (99.99997%) copper; advanced refining process still leaves the great variations in composition of impurities and crystalline structure according to employed method. All 6N copper materials are
different, and in reality, most of so colled 6N,7N materials are not measured comprehensively. As shown in disclosed analysis table, ACROLINK is the sole producer of stabilized ultra pure copper.
It is essential to maintain high purity, when necessary to achieve extended frequency response because composition of impurity inhibits capability due from impedance variance.

A unique stress-free process; is applied after formation of actual cable core structure for maximum effect, in special environment maintaining original purity to restore crystalline disorder caused by extrusion process

Insulation material; new polymer polyolefin, presently the best material available, has been chosen as insulator for extremely low dielectric constant factor which is 1/3 of polypropylene and 1/4 of PVC.

Power plugs; Produced by Oyaide electric inc., P-037 and IEC plug C-037 are another typical "made in Japan" products. With perfectly selected material, precision engineering and intricate/detailed finishing technologies, thoroughly produced all purely for the sound quality.

Resonance absorption; is one of big factors to decide final sound quality. ACROLINK always paid extra attention and built up tremendous know-how. Every product is carefully composed with selected materials in order to achieve perfectly balanced and effective absorption.

Specifications
Conductors : 6N copper,ø0.26 x 100 strands x 2 (red and black)
Conductors: 4N5 copper,ø0.26 x 100 strands x 1 (green)
Conductor resistance : 2.9 mΩ/m
Maximum current : 50A/VCTF Standard (6N-P4030) produced in conformity with PSE*
C-037 :
IEC (female) plug, custom made by Oyaide
Receptacles; 1.0mm thick, highly polished deoxidized Phosphorus Bronze for secure contact.
Extra thick Silver-base-plating (1.5µ ) and finishing Rhodium plating (0.3µ).
Thorough polishing (twice each) prior to each plating process.
Body/insulator; high rigidity engineering PBT (with 30% glass filler)
Exterior cover; high rigidity polycarbonate, customized coloring; black ruby
Max. Handling capacity; 125V/15A (PSE conformable)
P-037 : Power (male) plug, custom made by Oyaide
Blades: 1.4mm thick, highly polished deoxidized
Phosphorus Bronze for secure contact.
Extra thick Silver-base-plating (1.5µ) and finishing Rhodium plating (0.3µ)
Thorough polishing (twice each) prior to each plating process.
Body/insulator; high rigidity engineering PBT (with 30% glass filler).
Exterior cover; high rigidity polycarbonate, customized coloring; black ruby.
Max. Handling capacity; 125V/15A
(*PSE conformable, Product Safety Electrical Appliance and Material)
Length : 1.5m
Custom lengths available.

Typical Analysis impurities
Fe Ni Si Al
0.03 0.003 0.05 0.005
S Ag Na K
0.05 0.05 0.004 <0.005
U Th H O
<0.0002 <0.0003 <0.03 <1.0
Typical Analysis(impurities) ppm/GD-MS Gas Analysis
The standard, the specification, and the price of the product might change without a previous notice.
Acrolink® is a registered trademark of Acro Japan Corporation.
