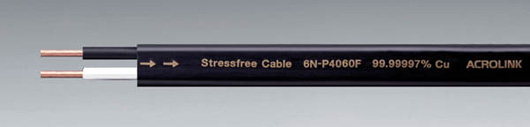

6N-P4060F
Remarkable Advances in Stress-Free Power Transport
6N-P4060F

Product introduction
Ultra high purity, 6N (99.99997%) copper; advanced refining process still leaves the great variations in composition of impurities and crystalline structure according to employed method. All 6N copper materials are
different, and in reality, most of so colled 6N,7N materials are not measured comprehensively. As shown in disclosed analysis table, ACROLINK is the sole producer of stabilized ultra pure copper.
It is essential to maintain high purity, when necessary to achieve extended frequency response because composition of impurity inhibits capability due from impedance variance.

A unique stress-free process; is applied after formation of actual cable core structure for maximum effect, in special environment maintaining original purity to restore crystalline disorder caused by extrusion process

Insulation material; High performance Ecological Polyethylene has excellent sound quality and low dielectric constant factor. New polymer polyolefin, presently the best material available, has been chosen as insulator for extremely low dielectric constant factor which is 1/3 of polypropylene and 1/4 of PVC.

Resonance absorption; is one of big factors to decide final sound quality. ACROLINK always paid extra attention and built up tremendous know-how. Every product is carefully composed with selected materials in order to achieve perfectly balanced and effective absorption.

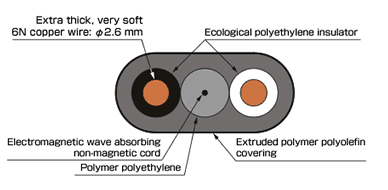

Structure

Specifications
Conductors : Extra thick, very soft stress-free 6N copper wire: ø2.6 mm x 2 wires
Conductor resistance : 33 m/meter
Electrostatic Capacitance : 25 pF/meter
Maximun current : 50A/EEF standard
Length : 30 meters/reel

Typical Analysis impurities
Fe Ni Si Ai
0.03 0.003 0.05 0.005
S Ag Na K
0.05 0.05 0.004 <0.006
U Th H O
<0.0002 <0.0003 <0.03 <1.0
ppm/GD-MS Gas Analysis
The standard, the specification, and the price of the product might change without a previous notice.
