6N-S1000II
A Completely New Concept in Parallel Two-Core Speaker Cable.
6N-S1000II

Product introduction
Speaker cable is the most unclear area of the system due to the fact that every audiophile provides different environment for the cable to perform, length could be tremendously different from one to another and speaker system to be connected could be even more variable. It is important to maintain minimum adverse factor within the cable which increases in proportion to the length and could multiply in part, due to impedance variation of speaker system.

Ultra high purity, 6N (99.99997%) copper; advanced refining process still leaves the great variations in composition of impurities and crystalline structure according to employed method. All 6N copper materials are
different, and in reality, most of so colled 6N,7N materials are not measured comprehensively. As shown in disclosed analysis table, ACROLINK is the sole producer of stabilized ultra pure copper.
It is essential to maintain high purity, when necessary to achieve extended frequency response because composition of impurity inhibits capability due from impedance variance.

A unique stress-free process; is applied after formation of actual cable core structure for maximum effect, in special environment maintaining original purity to restore crystalline disorder caused by extrusion process.

Insulation material; High performance Ecological Polyethylene has excellent sound quality and low dielectric constant factor.

Resonance absorption; is one of big factors to decide final sound quality. ACROLINK always paid extra attention and built up tremendous know-how. Every product is carefully composed with selected materials in order to achieve perfectly balanced and effective absorption.

The structure of cable must be designed ideally for optimum electromagnetic formation, therefore with minimum adverse properties such as electrostatic capacitance, inductance, dielectric constant factor etc., since signal transmission is carried out on electromagnetic field.

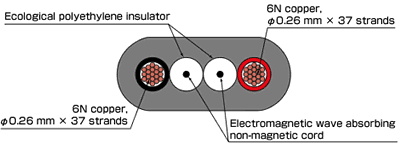

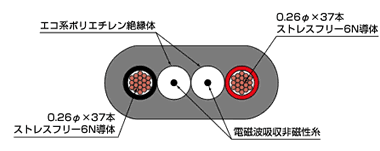

Structure

Specifications
Conductors : 6N copper, ø0.26 mm x 37 strands x 2 (red and black)
Electromagnetic wave absorbing non-magnetic cord x 2
Conductor resistance : 8.3 m/meter
Electrostatic capacitance : 12 pF/meter
Length : 50 meters/reel

Typical Analysis impurities
Fe Ni Si Ai
0.03 0.003 0.05 0.005
S Ag Na K
0.05 0.05 0.004 <0.006
U Th H O
<0.0002 <0.0003 <0.03 <1.0
ppm/GD-MS Gas Analysis
The standard, the specification, and the price of the product might change without a previous notice.
Acrolink® is a registered trademark of Acro Japan Corporation.
