| Cable diameter |
: |
11.0mm |
| Conductor |
: |
7N Cu D.U.C.C Stressfree Liz wire 0.24mm x 25 strands x2 cores(AWG 16) |
| Insulation |
: |
Polyethylene resin |
| Inner sleeve |
: |
Hybrid Polyolefin resin with resonance control powder
(Tungsten + Amorphous) |
| Shielding |
: |
Copper foil tape + Braided 7N Cu wire + Noise BEAT tape + braided UEW |
| Outer sleeve |
: |
UV resistant Polyurethane resin |
| Conductor resistance |
: |
18mΩ/m |
| Electrostatic capacitance |
: |
57pF/m |
| Impedance specification |
: |

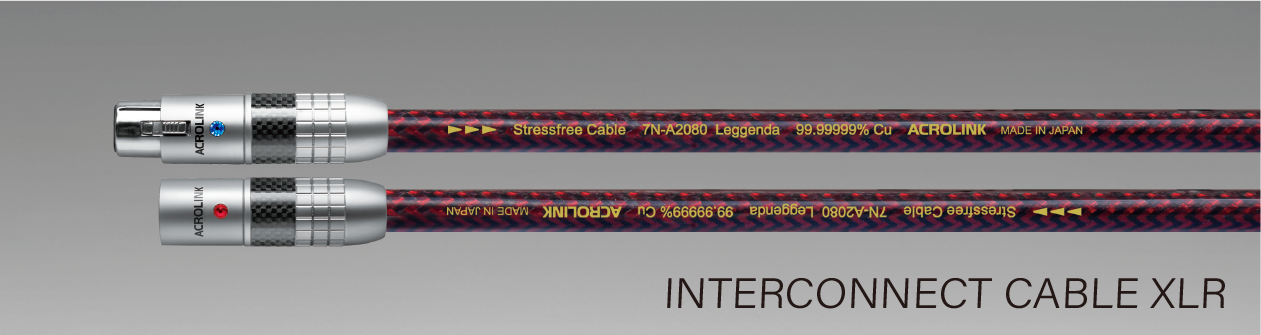

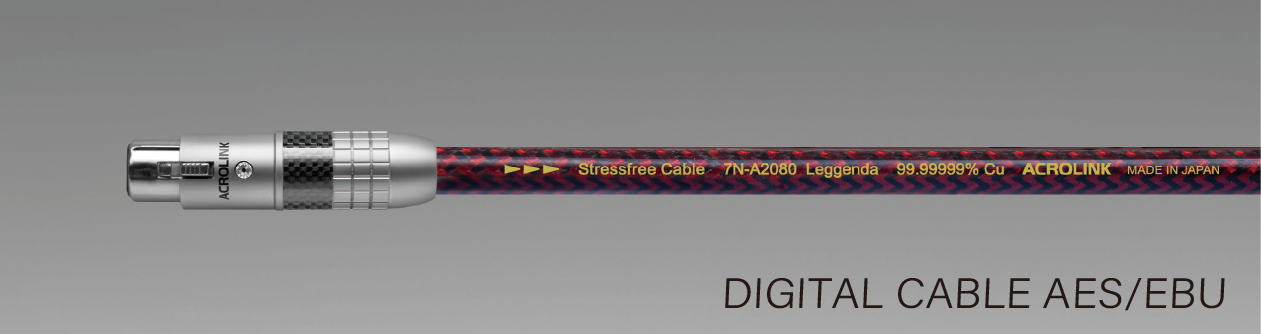

110Ω(XLR & AES/EBU) |
|
| Center contact pin |
: |
Hollow shaped Beryllium copper |
| Negative side contact part |
: |
Deoxidized Phosphor copper |
| Plating |
: |
Silver layered Rhodium(Hand polished before plating) |
| Cover |
: |
Aluminum + Carbon fiber + Duralumin |
|
| Contact parts |
: |
Hollow shaped Tellurium copper(Male),
Beryllium copper(Female) |
| Plating |
: |
Rhodium |
| Cover |
: |
Brass + Carbon fiber |
| Standard length of 7N-A2080 Leggenda series are 1.0m and 1.5m.Special length order available. |
| D.U.C.C stands for Dia Ultra Crystallized Copper which is specifically developed copper wire for high-end audio cables. D.U.C.C has controlled crystal structure and the minimized transmission loss. Patent technology and registered trade mark of Mitsubishi Materials LTD. |
| Noise BEAT tape is a thin aluminum resin tape which is able to efficiently absorb noise current. Developed and trade mark of NTT AT (Nippon Telegraph and Telephone Corporation Advanced Technology) |
| UEW stands for Urethane Enamel Wire |
|
| Fe |
Ni |
Si |
Al |
| 0.03 |
0.003 |
0.04 |
0.005 |
| S |
Ag |
Na |
K |
| 0.05 |
0.04 |
0.004 |
< 0.005 |
| U |
Th |
H |
O |
| < 0.0002 |
< 0.0003 |
< 0.03 |
< 1.0 |
|
| Typical Analysis(impurities) |
ppm/GD-MS Gas Analysis |
|
●The standard, the specification, and the price of the product might change without a previous notice.
●"ACROLINK®" and "Stressfree®" are registered trademarks of Acro Japan Co., Ltd.
●"D.U.C.C.®" is a registered trademark of Mitsubishi Materials Corporation.
●"Noise BEAT®" is a registered trademark of NTT Advanced Technology Corporation.
|
|
|
|
|
|
