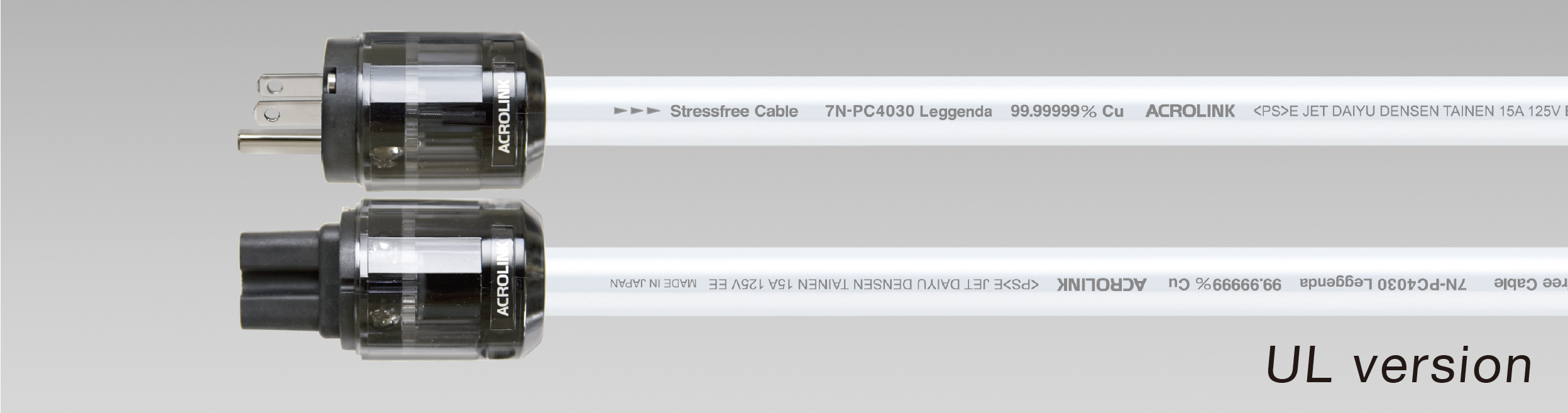

•7N-PC4030 Leggenda Standard length is 1.5m. Special length order is available

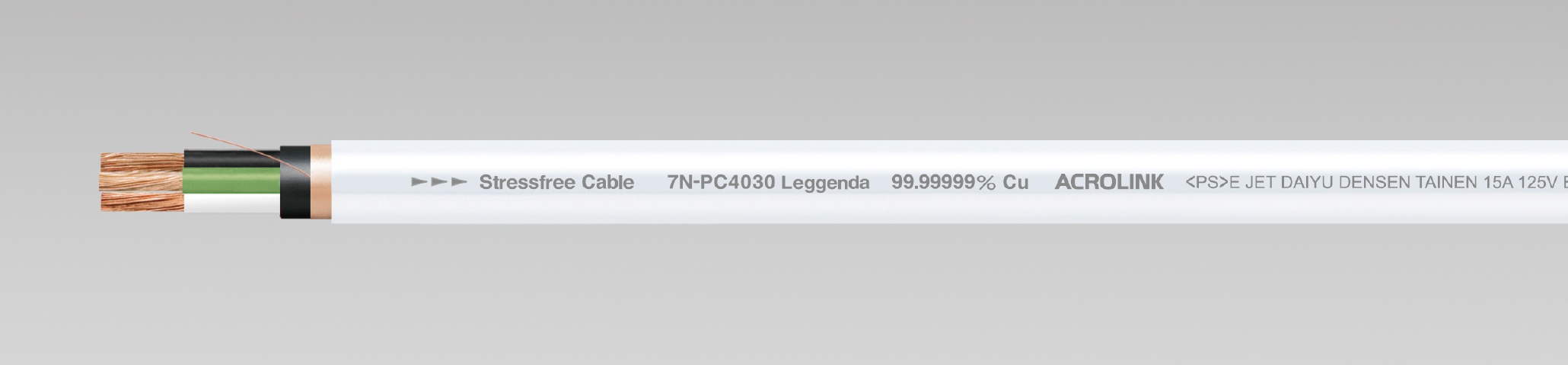

•7N-PC4030 Leggenda CB Packaging : 30m on spool

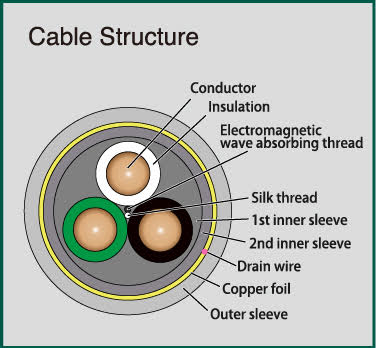

| Conductor |
: |
7N Cu D.U.C.C. Stressfreex2(0.37x50 strands)
4N Cu for groundx2(0.37x50 strands) |
| Single Conductor size |
: |
5.36 Sq(AWG 10) |
| Insulation material |
: |
High molecular Polyolefin Resin (Black & White & Green) |
| 1st Inner sleeve |
: |
High molecular Polyolefin +tungsten+ amorphous+ carbon powder |
| 2nd Inner sleeve |
: |
Polyolefin with Resonance control powder |
| Shielding |
: |
Copper foil with drain wire |
| Outer sleeve |
: |
Lead free Polyvinyl Chloride |
| Conductor resistance |
: |
2.8mΩ/m |
| Cable diameter |
: |
15.7mm |
|
| Contact parts |
: |
Beryllium copper |
| Plating |
: |
Silver layered rhodium(Polished before plating) |
| Body |
: |
Poly Butylene Terephtalate with glass fiber |
| Outer case |
: |
Polycarbonate |
|
| Fe |
Ni |
Si |
Al |
| 0.03 |
0.003 |
0.04 |
0.005 |
| S |
Ag |
Na |
K |
| 0.05 |
0.04 |
0.004 |
< 0.005 |
| U |
Th |
H |
O |
| < 0.0002 |
< 0.0003 |
< 0.03 |
< 1.0 |
|
| Typical Analysis(impurities) |
ppm/GD-MS Gas Analysis |
|
●The standard, the specification, and the price of the product might change without a previous notice.
●"ACROLINK®" and "Stressfree®" are registered trademarks of Acro Japan Co., Ltd.
●"D.U.C.C.®" is a registered trademark of Mitsubishi Materials Corporation.
|
|
|
|
|
