•Standard length is 1.5m. Special length order is available
•Sold in 30m on spool

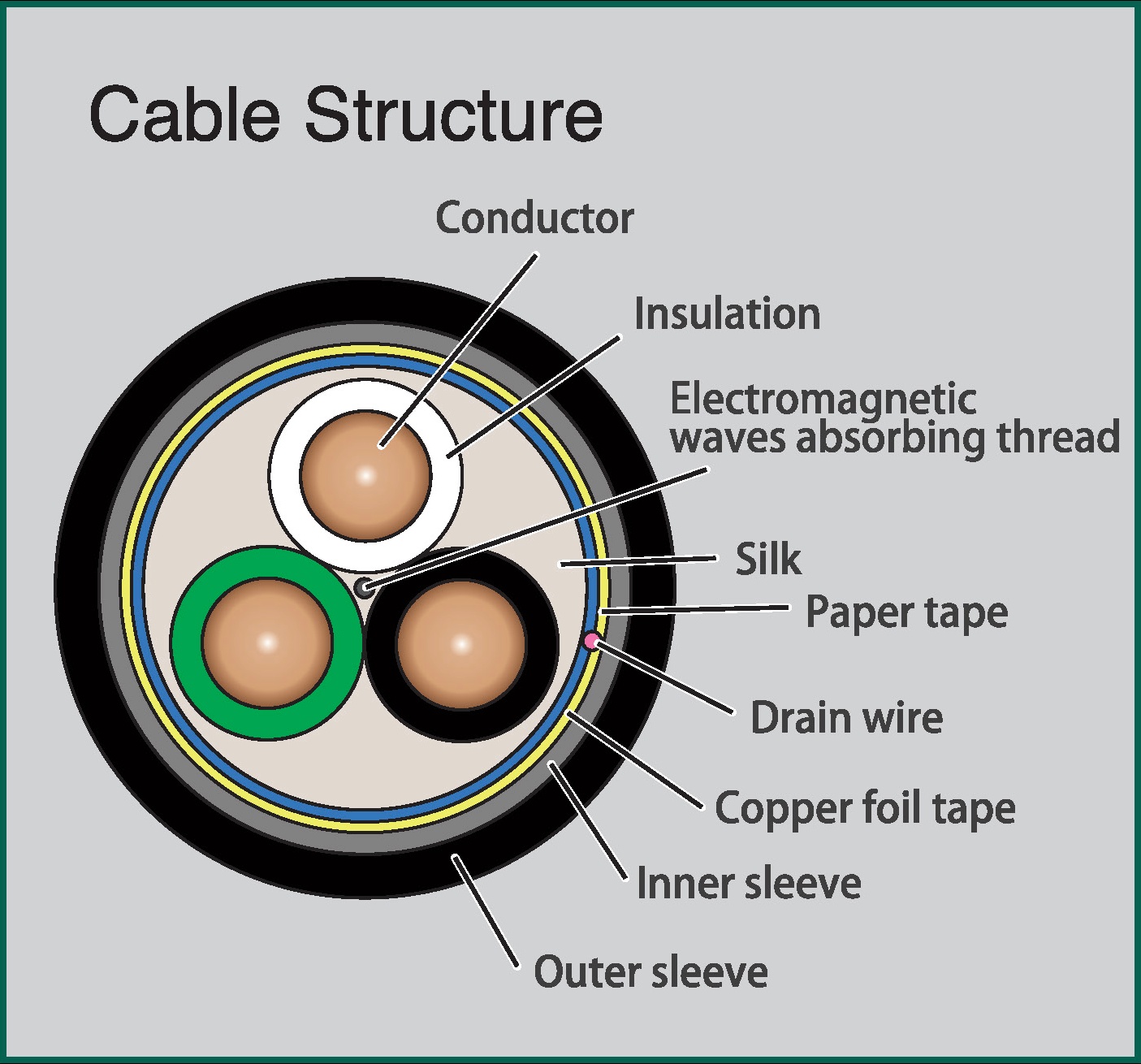

| Conductor |
: |
7N Cu D.U.C.C. Stressfreex2(0.37mm×50 strands. 5.4 Sq. AWG10)×2 |
|
: |
4N Cu for ground (0.37mm×50 strands) |
| Insulation |
: |
High molecular Polyolefin Resin |
| Inclusion |
: |
100% Silk |
| Shielding |
: |
Copper foil tape with drain wire |
| Inner sleeve |
: |
Polyolefin resin with Tungsten and Amorphous powder |
| Outer sleeve |
: |
High molecular Polyolefin Resin |
| Conductor resistance |
: |
2.7mΩ/m |
| Cable diameter |
: |
14.7mm |
|
| Blade |
: |
Berylium copper (Buff Polished) |
| Plating |
: |
Silver layered Rhodium |
| Body |
: |
Polybutylene Terephthalate with 30% Glass filled |
| Inter case |
: |
Polyacetal Resin (CNC machined from solid block of material) |
| Outer case |
: |
Duralumin A2017 (CNC machined from solid block of material) |
| *D.U.C.C stands for Dia Ultra Crystallized Copper which is specifically developed copper wire for high-end audio cables. D.U.C.C has controlled crystal structure and the minimized transmission loss. Patent technology and registered trade mark of Mitsubishi Materials LTD.
|
|
| Fe |
Ni |
Si |
Al |
| 0.03 |
0.003 |
0.04 |
0.005 |
| S |
Ag |
Na |
K |
| 0.05 |
0.04 |
0.004 |
< 0.005 |
| U |
Th |
H |
O |
| < 0.0002 |
< 0.0003 |
< 0.03 |
< 1.0 |
|
| Typical Analysis(impurities) |
ppm/GD-MS Gas Analysis |
|
●The standard, the specification, and the price of the product might change without a previous notice.
●"ACROLINK®" and "Stressfree®" are registered trademarks of Acro Japan Co., Ltd.
●"D.U.C.C.®" is a registered trademark of Mitsubishi Materials Corporation.
|
|
|
|
|
