7N-PC8100 Leggenda

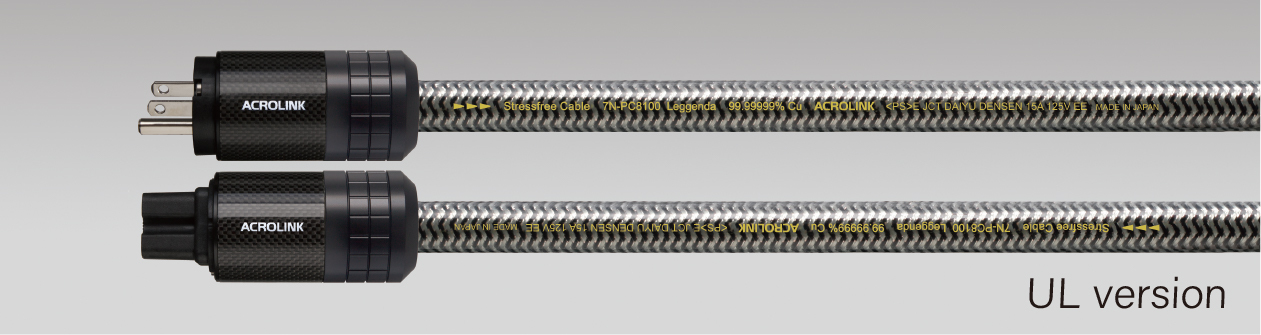

7N-PC8100 Leggenda ULversion

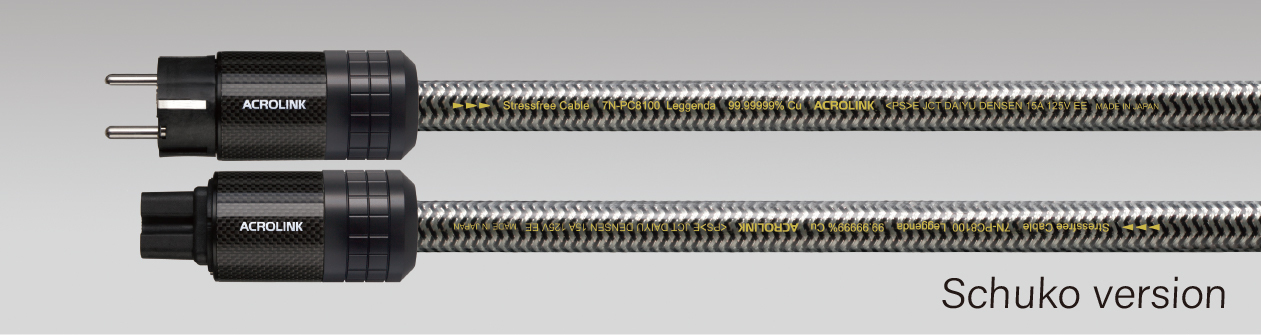

7N-PC8100 Leggenda Scukoversion

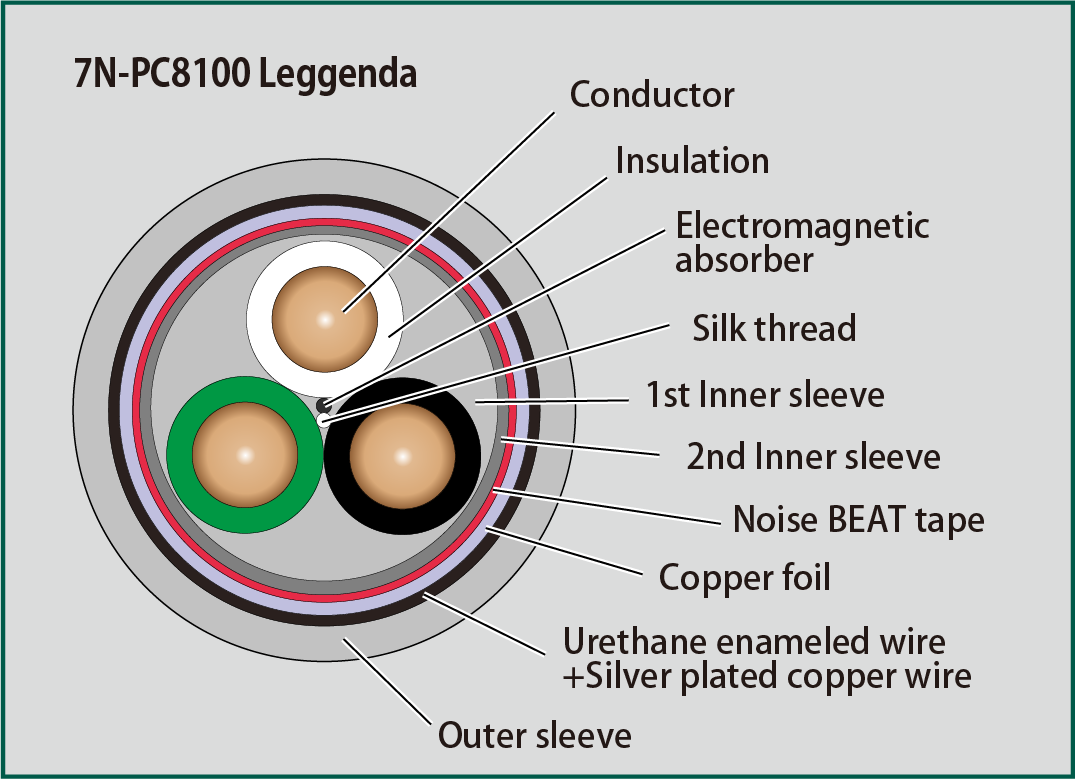

Structure


Specifications
Conductor : 7N Cu D.U.C.C Stressfree 0.37Φ x 50 strands x 2 cores(AWG 10)
4N5 Cu for ground 0.37Φ x 50 strands(AWG 10)
Insulation material : High molecular Polyolefin Resin(Black & White & Green)
1st Inner sleeve : High molecular Polyolefin + tungsten + amorphous + carbon powder
2nd Inner sleeve : Polyolefin with Resonance control powder
Final shielding : Polyurethane enameled wire(Black) + Silver plated copper(Silver) braided wire
Outer sleeve : UV resistant Polyurethane
Conductor resistance : 3.3mΩ/m
Cable diameter : 16.0mm

Typical Analysis impurities
Contact parts : Beryllium copper
Plating : Silver layered rhodium(polished before plating)
Body : Special resin + brass + carbon fiber + aluminum
Black anodized aluminum specially for 7N-PC8100 Leggenda
Standard length of 7N-PC8100 Leggenda is 1.5m.
Special length order is available.
D.U.C.C stands for Dia Ultra Crystallized Copper which is specifically developed copper wire for high-end audio cables. D.U.C.C has controlled crystal structure and the minimized transmission loss. Patent technology and registered trade mark of Mitsubishi Materials LTD.
Noise BEAT tape is a thin aluminum resin tape which is able to efficiently absorb noise current. Developed and trade mark of NTT AT(Nippon Telegraph and Telephone Corporation Advanced Technology)

TAI
Fe Ni Si Al
0.03 0.003 0.04 0.005
S Ag Na K
0.05 0.04 0.004 < 0.005
U Th H O
< 0.0002 < 0.0003 < 0.03 < 1.0
Typical Analysis(impurities) ppm/GD-MS Gas Analysis
●The standard, the specification, and the price of the product might change without a previous notice.
●"ACROLINK®" and "Stressfree®" are registered trademarks of Acro Japan Co., Ltd.
●"D.U.C.C.®" is a registered trademark of Mitsubishi Materials Corporation.
●"Noise BEAT®" is a registered trademark of NTT Advanced Technology Corporation.
