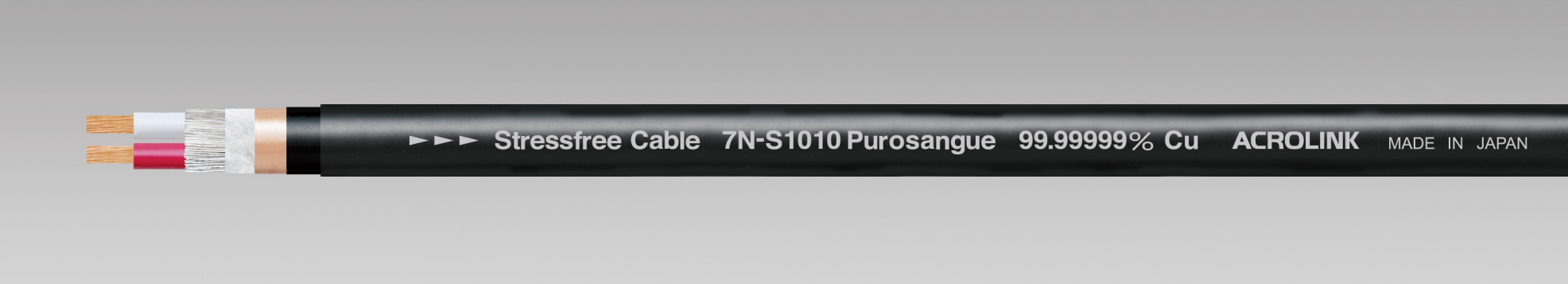

7N-S1010 Purosangue
7N-S1010 Purosangue

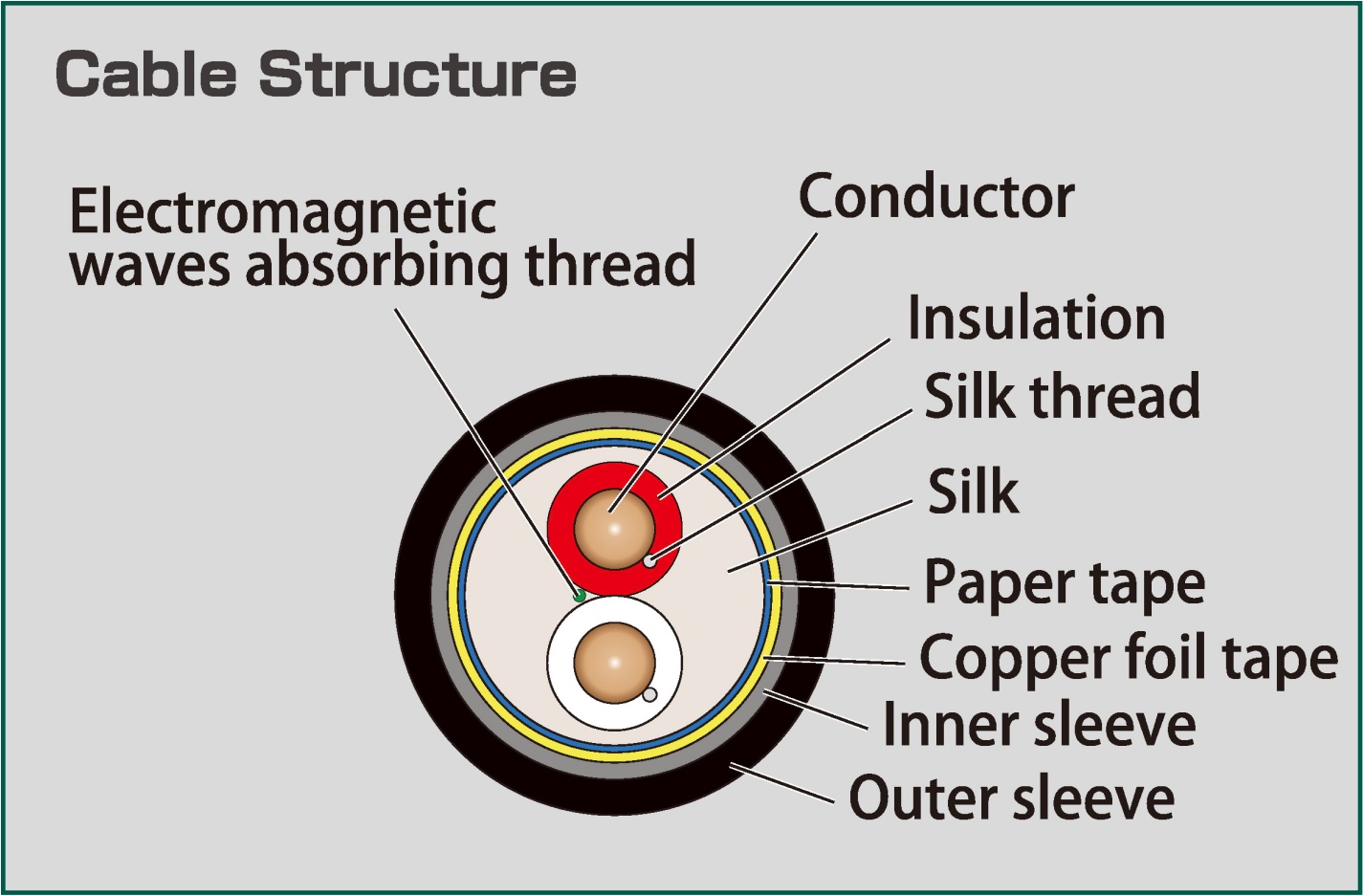

Structure



Specifications
Outer diameter : 10.6mm
Conductor : 7N Cu D.U.C.C Stressfree (0.37mm × 18 strands. 1.9 Sq. AWG14) × 2
Insulation : High molecular Polyolefin Resin
Inclusion : 100% Silk
Shielding : Copper foil tape
Inner sleeve : Polyolefin resin with Tungsten and Amorphous powder
Outer sleeve : High molecular Polyolefin resin
Conductor resistance : 7.4 mΩ/m
Electrostatic capacitance : 77 pF/m
●Packaging : 30m on spool
*D.U.C.C stands for Dia Ultra Crystallized Copper which is specifically developed copper wire for high-end audio cables. D.U.C.C has controlled crystal structure and the minimized transmission loss. Patent technology and registered trade mark of Mitsubishi Materials LTD.

TAI
Fe Ni Si Al
0.03 0.003 0.04 0.005
S Ag Na K
0.05 0.04 0.004 < 0.005
U Th H O
< 0.0002 < 0.0003 < 0.03 < 1.0
Typical Analysis(impurities) ppm/GD-MS Gas Analysis
●The standard, the specification, and the price of the product might change without a previous notice.
●"ACROLINK®" and "Stressfree®" are registered trademarks of Acro Japan Co., Ltd.
●"D.U.C.C.®" is a registered trademark of Mitsubishi Materials Corporation.
