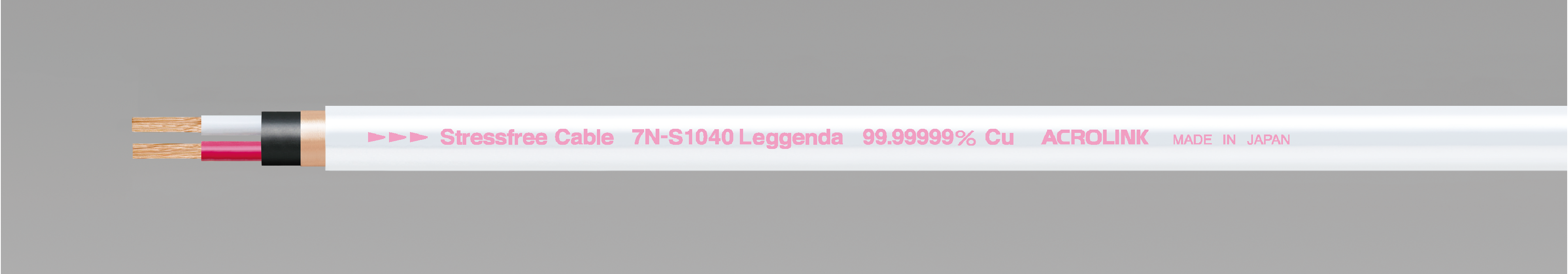

7N-S1040 Leggenda
7N-S1040 Leggenda

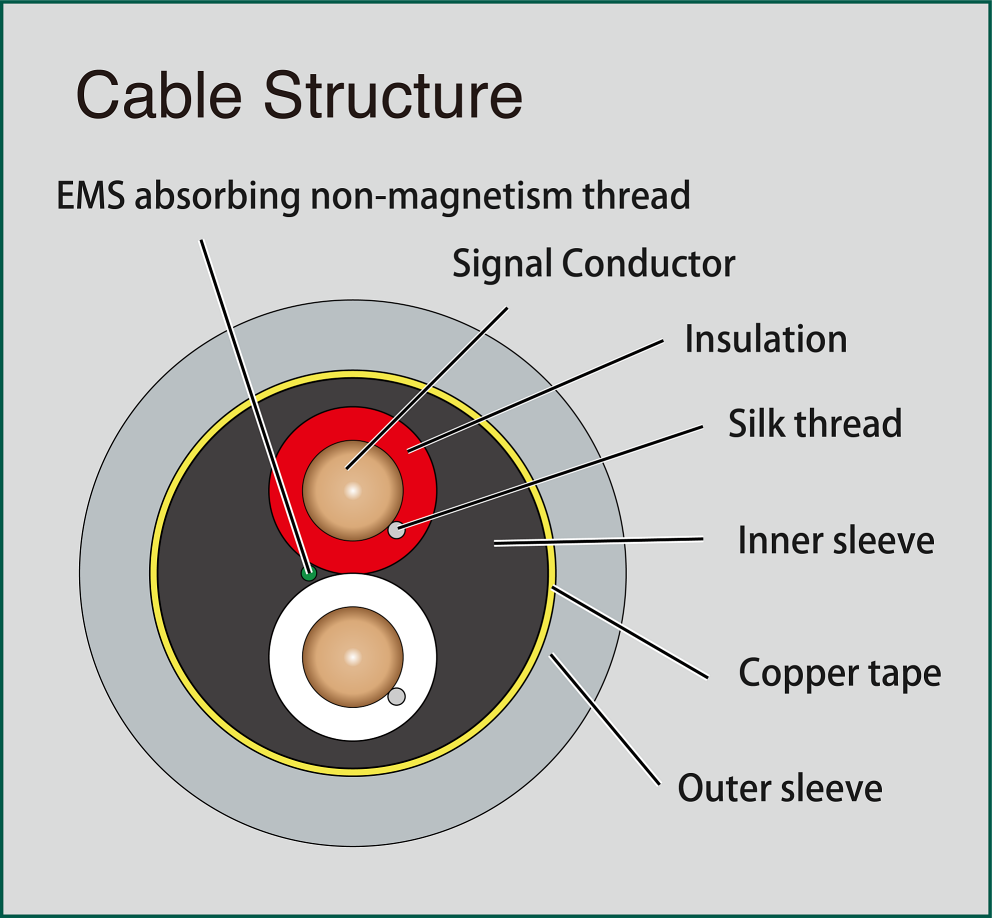

Structure



Specifications
Outer diameter : 13.2mm
Single Conductor : 7N D.U.C.C Stressfree 0.37ø × 50 Strands(2 cores)
Single Conductor size : 5.36 Sq(AWG 10)
Insulation material : High molecular Polyolefin Resin(Red & White)
Inner sleeve : Polyolefin with Reasonance control powder
+ Tungsten + Amorphous
Shielding : Copper tape
Outer sleeve : Lead free Polyvinyl Chloride
Conductor resistance : 2.8 mΩ/m
Electrostatic capacitance : 76 pF/m
●Packaging : 30m on spool

TAI
Fe Ni Si Al
0.03 0.003 0.04 0.005
S Ag Na K
0.05 0.04 0.004 < 0.005
U Th H O
< 0.0002 < 0.0003 < 0.03 < 1.0
Typical Analysis(impurities) ppm/GD-MS Gas Analysis
●The standard, the specification, and the price of the product might change without a previous notice.
●"ACROLINK®" and "Stressfree®" are registered trademarks of Acro Japan Co., Ltd.
●"D.U.C.C.®" is a registered trademark of Mitsubishi Materials Corporation.
